- **Motherboard or HBA card used must support PCIe bifurcation** to allow PCIe x16/x8 slot to be split into 4x4 or 4x2 configurations
- Support up to 4 x NVMe M.2 SSD (M Key) in 2230, 2242, 2260, 2280 sizes via PCIe x16 interface
- 40mm dual ball bearing fan included with on/off switch
- Support USAP and TRIM with data center-grade reliability

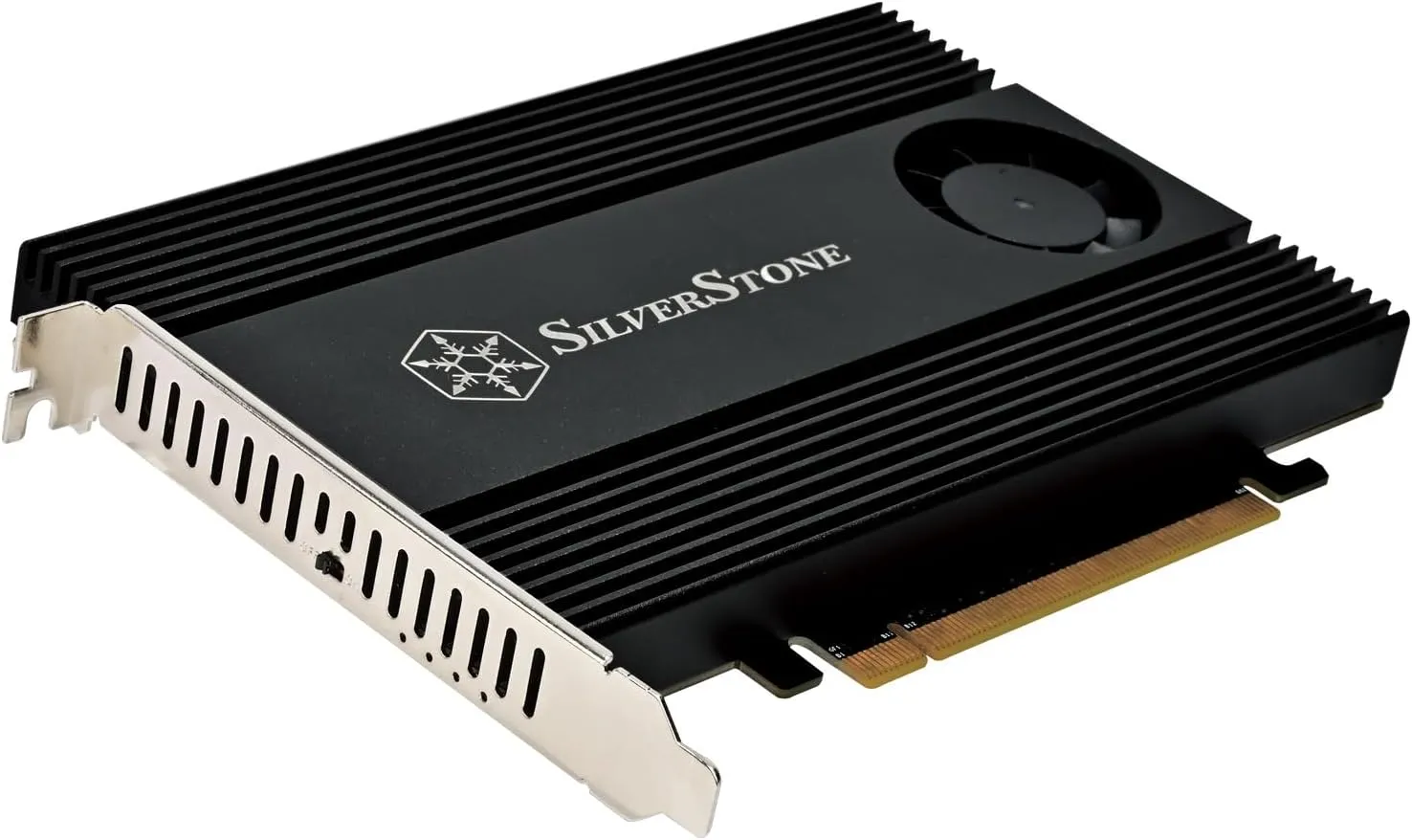

SilverStone ECM40 is a PCIe 4.0 x16 to 4 x M.2 NVMe SSD expansion card designed for users looking to expand their storage capacity by adding up to four M.2 NVMe SSDs via a PCI-Express x16 slot. The ECM40 supports four M.2 SSDs in various form factors, including 2230, 2242, 2260, and 2280mm. Since high-performance M.2 SSDs can generate significant heat during operation, which may lead to thermal throttling and data loss, the ECM40 features a 40mm dual ball-bearing cooling fan with 7,000 RPM to maintain optimal operating temperatures. For users seeking top-speed performance or looking to expand storage with M.2 SSDs in their PC systems, the ECM40 is an excellent choice.
