- Features || 8 inputs || 4 mic channels || 2 stereo channels || 16 DSP effects || Bluetooth || USB/SD media player || Footswitch socket ||
- Specifications || Mic Inputs: 4 || Stereo Inputs: 2 || Mic Gain Range: 6dB to 50dB || Line Gain Range: 10dB to 34dB || EIN: -100dB || Frequency Responce: 10Hz - 20kHz ( 1/-3dB) || THD Mic Channel: <0.1% || Signal to Noise Ratio: 80dB || Output Levels: Max 26dB (Bal), 20dB (unBal) ||
- Specifications || EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz || USB/SD: MP3 Audio playback || Record: To USB drive or SD card (128kbps mono) || DSP Effects: 16 DSP effects || Power Requirements: 100V - 240V ~ || Dimension W*H*D: 12 x 14.37 x 3.14 inch || Weight: 10 lbs ||

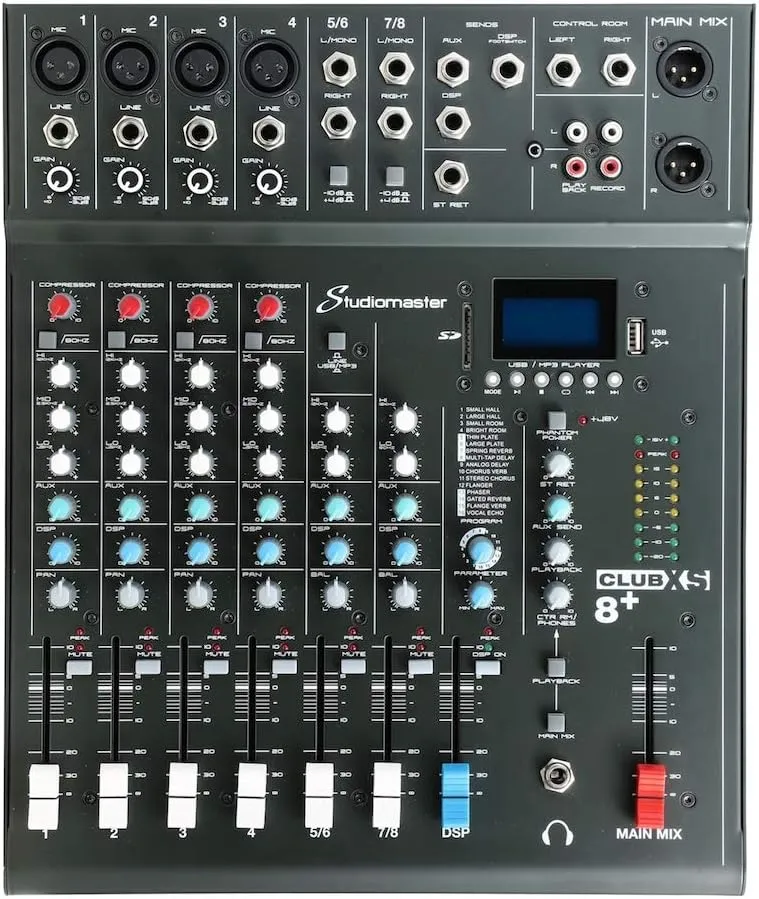

- Studiomaster Club XS models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black. ||
- Compact and portable, featuring 3 band EQ, built-in channel compression, DSP effects and a hugely versatile Bluetooth/MP3/USB/SD playback and recording media system.
STUDIOMASTER 8CH MIX BOARD DSP USB MP3
